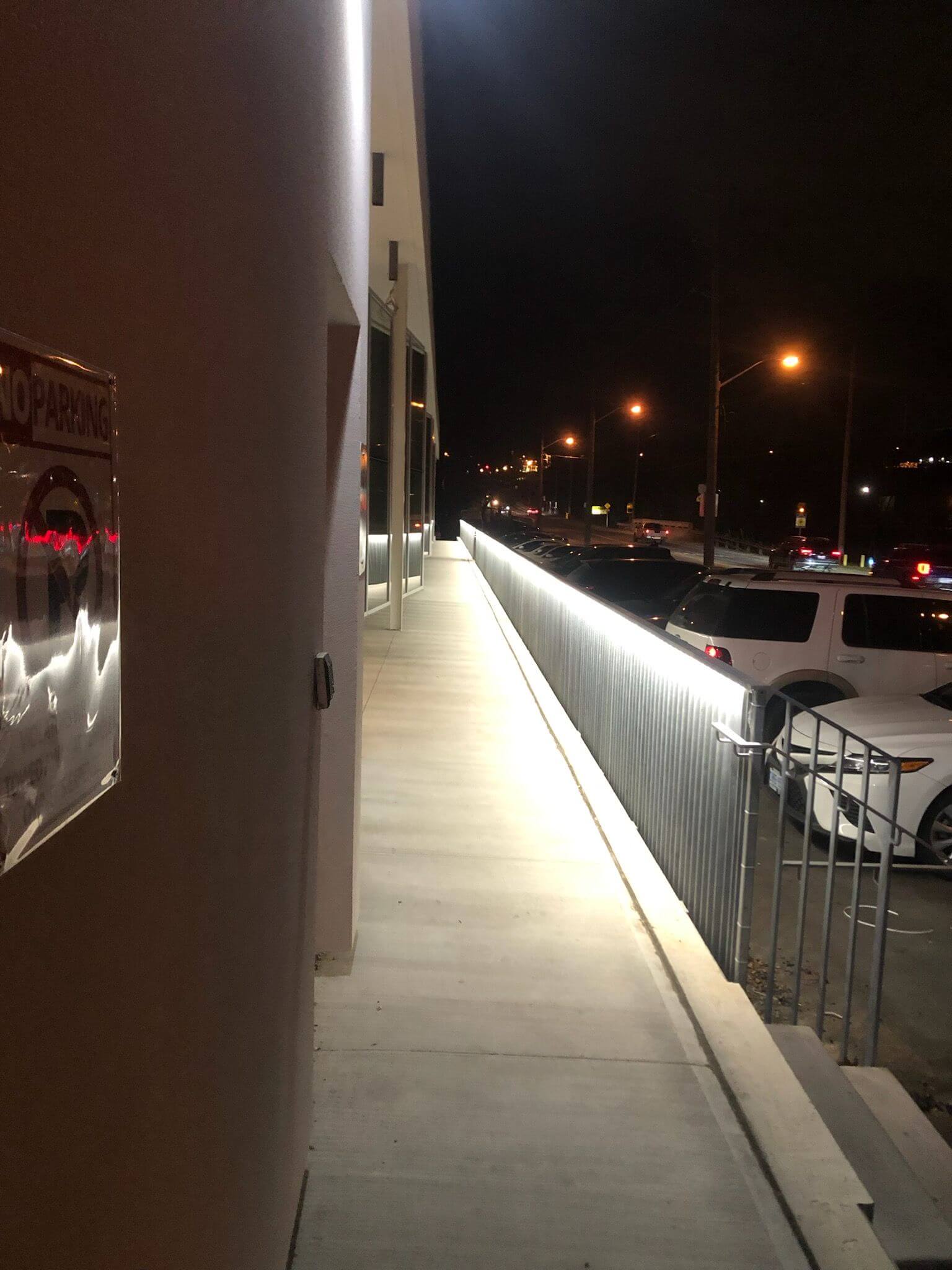

Outdoor elevated walkway illuminated by custom rail lighting at night

Projects Commercial Exterior Lighting

Outdoor Rail Lighting for an Elevated Walkway

A 60 ft custom linear LED lighting system integrated beneath a continuous handrail to improve safety, visibility, and architectural appeal.

Commercial property 60 ft linear LED system Design + manufacturing + wiring support

Project Overview

Safety-focused illumination with a clean architectural finish.

A real estate developer engaged us to enhance the safety and visual appeal of an outdoor walkway through effective nighttime illumination at one of their commercial properties.

After evaluating multiple lighting concepts and presenting curated luminaire samples, we were selected to design and manufacture a custom linear LED lighting solution tailored to the site.

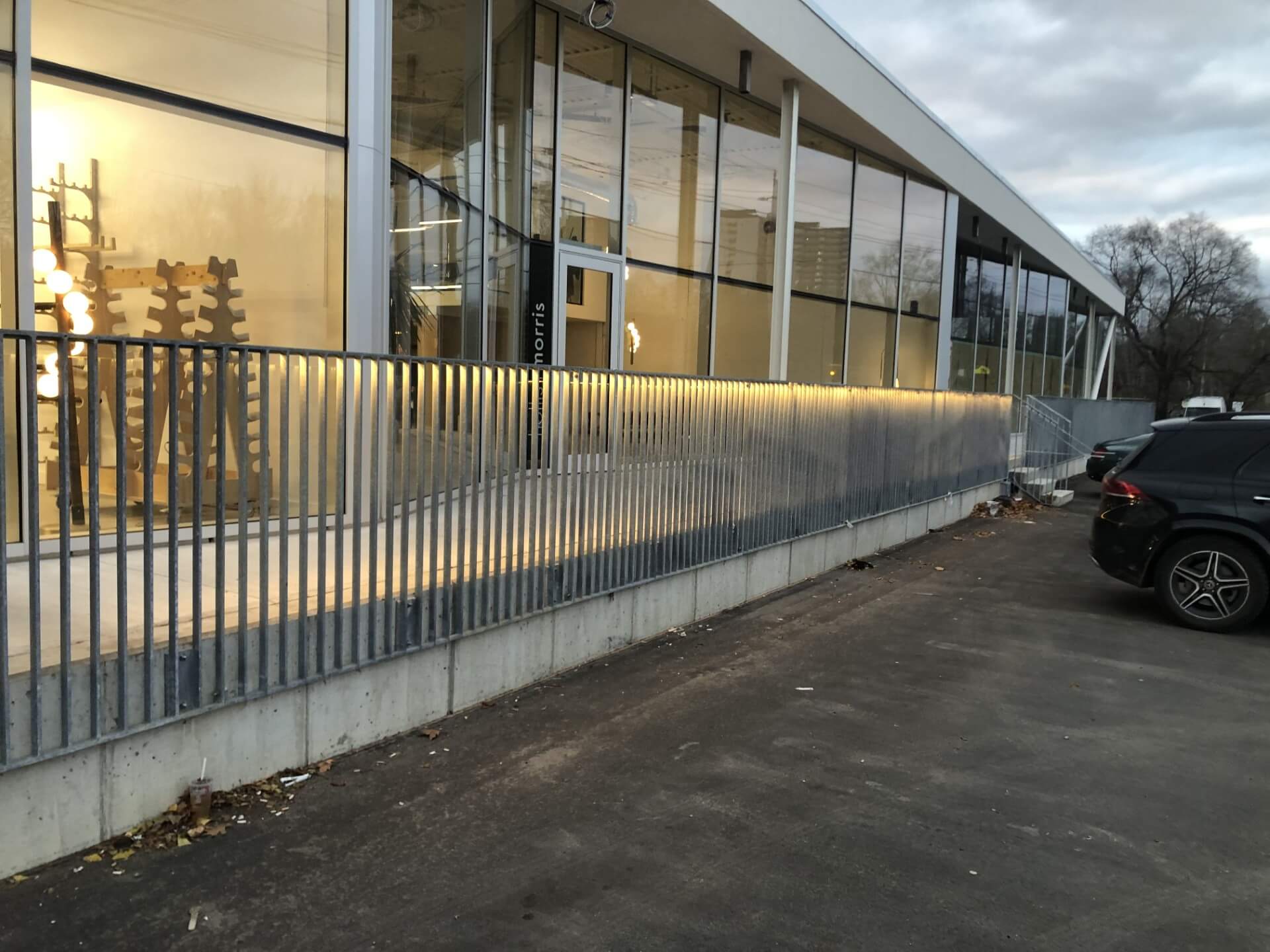

Diana Lighting and Controls delivered a 60 ft long precision-engineered linear LED lighting system seamlessly integrated along the underside of a continuous handrail on an elevated walkway, providing consistent, glare-controlled illumination.

We completed the lighting scope from design, manufacturing, and detailed wiring diagrams to close collaboration with the electrical contractor, ensuring a smooth installation and a durable, high-performance result that significantly improved both safety and aesthetics.

Challenge

Given the recessed outdoor installation at the base of a continuous handrail, the project required an IP68-rated LED light source operating at a maximum of 24V for electrical safety in a wet, accessible environment.

The extended lighting runs introduced a risk of voltage drop, so driver locations had to be planned carefully to keep light output consistent across the full length of the luminaires.

Solution

We engineered the LED lighting system to balance performance, reliability, material costs, and installation time without compromising the finished lighting quality.

Execution

Our scope included design, manufacturing, detailed wiring diagrams, curated luminaire samples, and close collaboration with the electrical contractor for a smooth installation.

Outcome

A durable lighting system that improved safety and nighttime presence.

The finished system provides consistent illumination across the elevated walkway, helping visitors move through the property more safely while giving the rail line a clean, intentional glow after dark.

Custom linear LED system manufactured for the site
Glare-controlled lighting beneath a continuous handrail
Detailed wiring diagrams for the electrical contractor
Improved safety, visibility, and exterior aesthetics

Nighttime view of outdoor walkway illuminated by custom handrail lighting

Diana Lighting and Controls completed the lighting scope from design and manufacturing to wiring documentation and contractor coordination, delivering a durable, high-performance result for the commercial property.
